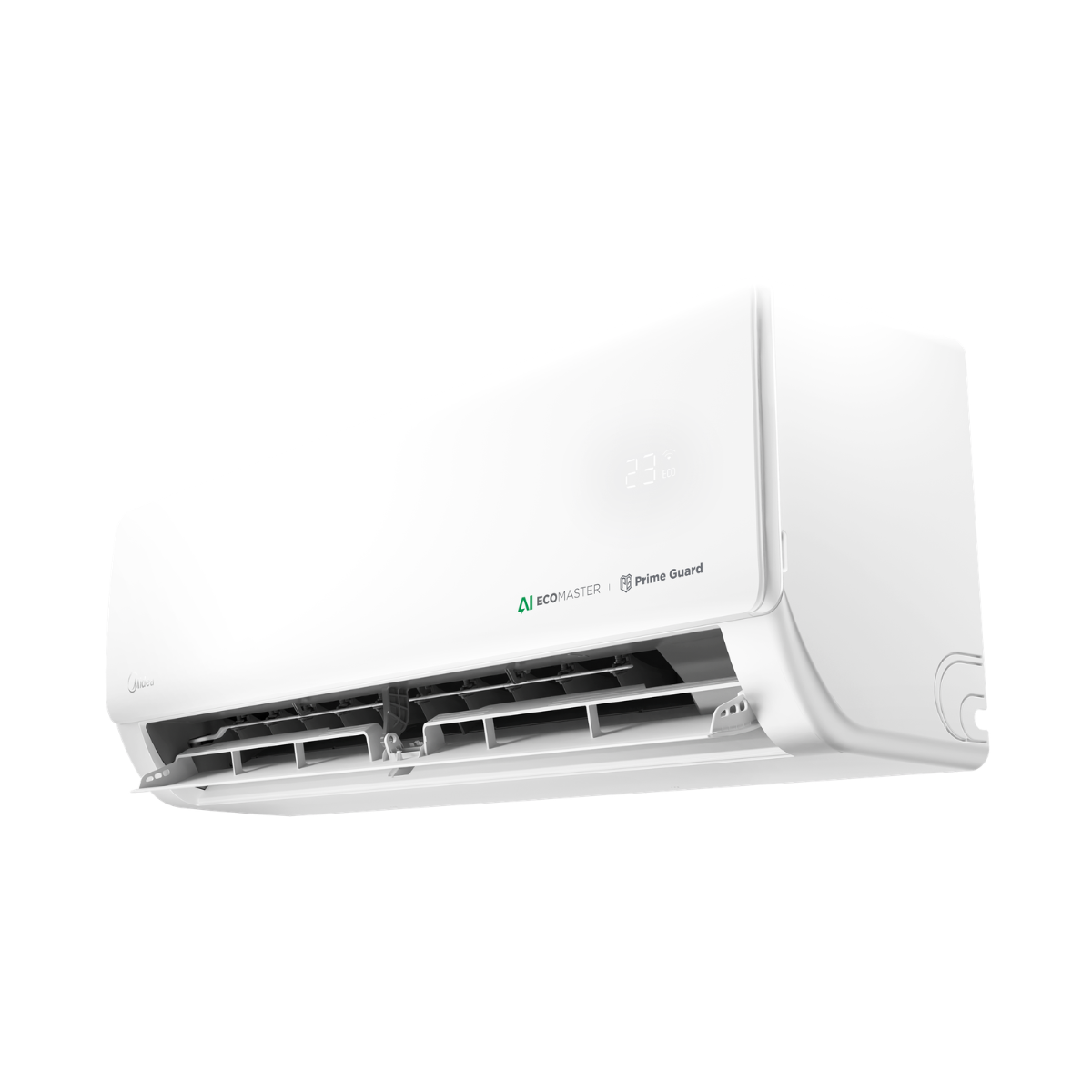

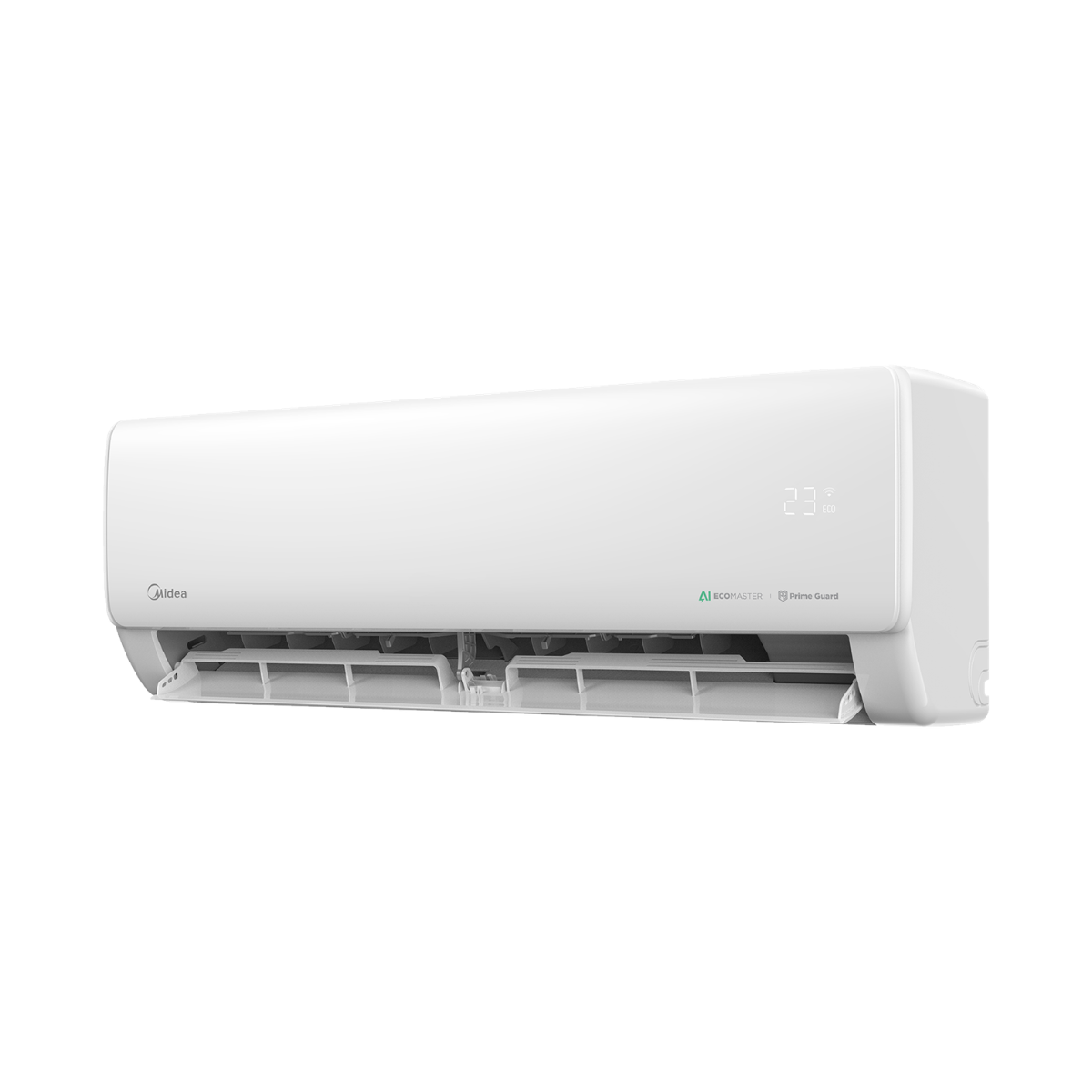

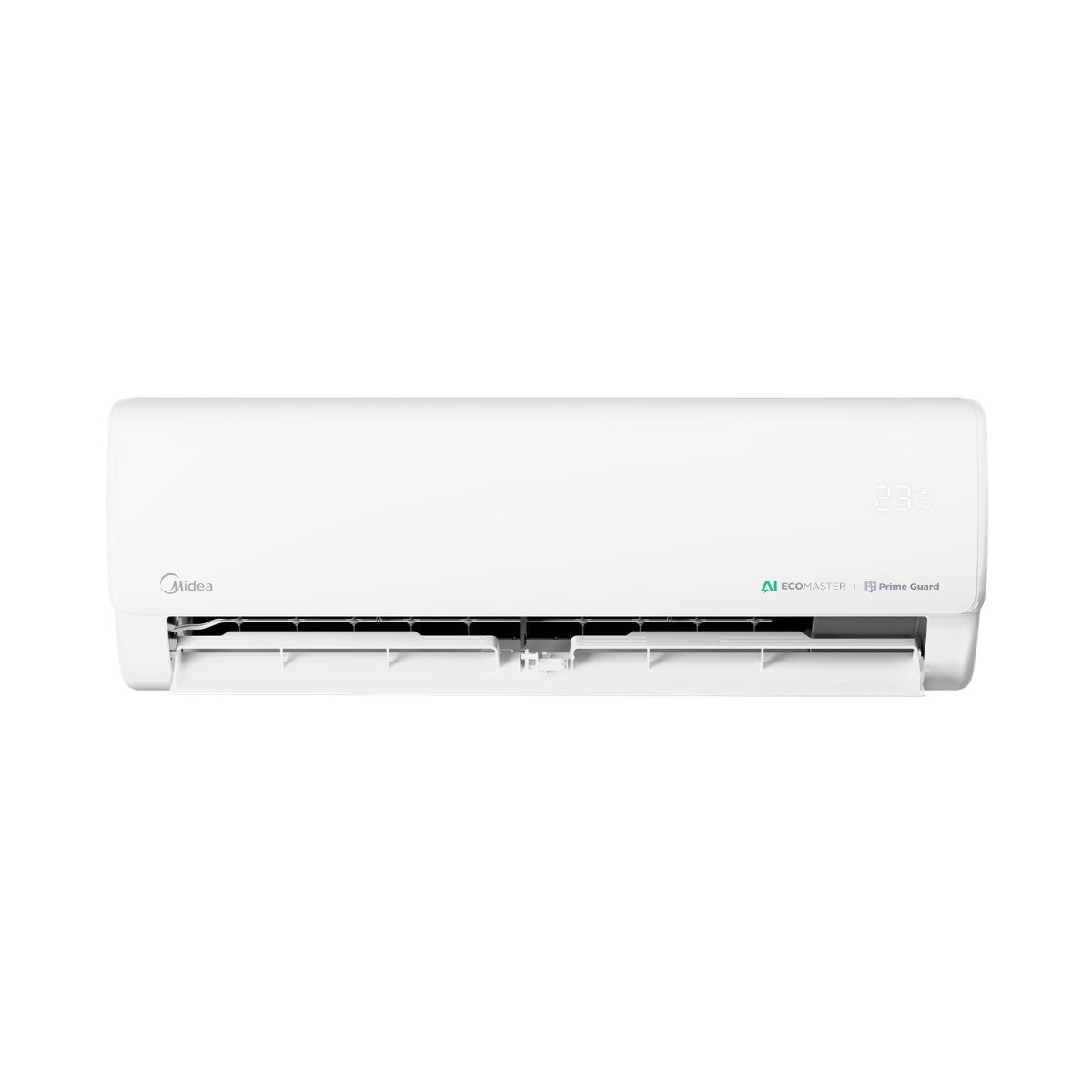

Midea 1.00 HP Chione Series Split-Type Inverter Air Conditioner (Class A)

The 1.00 HP Midea Chione Series High Wall Inverter Split-Type Air Conditioner delivers reliable cooling with PrimeGuard Hyper Graphfins technology, offering 12.5 times greater corrosion resistance than standard, blue-coated fins for long-lasting performance. Featuring Smart Control with AI Ecomaster, it allows you to manage your air conditioner anytime, anywhere while optimizing energy consumption through intelligent AI technology. Its AI Humidity Control system maintains balanced moisture levels, ensuring fresher, more comfortable air for your home.

Features

Primeguard Hyper Grapfins
Provides 12.5x corrosion resistance than blue-coated fins to ensure all-weather comfort for your family.
Smart Control + Ai Ecomaster
Smart control anytime, anywhere with energy management and AI technology features (AI Ecomaster)
Ai Humidity Control
Enjoy balanced moisture levels, delivering fresh, perfectly balanced air.

Specifications

Cooling (Standard Conditions)
Power supply: 220-240V-50/60Hz-1Ph
Capacity: 1.0HP
Input (W): 830
Current (A): 3.61

Indoor Unit
Indoor Air Flow: 605/550/400/320 (CF/Hi/Mi/Lo)
Indoor noise level (Hi Mi Lo Si): 40/34/31/18
Dimensions (WxDxH): 723x199x286
Package Dimension (Wxdxh): 780x270x365
Net Gross Weight (kg): 7.1 / 9.3 KG

Outdoor Unit
Outdoor noise level dB(A): 51.5
Dimensions (WxDxH): 668x252x469
Package Dimension (Wxdxh): 765x270x525
Net Gross Weight (kg): 16.7/18.3

Refrigerant Piping
Refrigerant Type: R32/0.36
Design pressure: 4.3/1.7
Liquid side Gas side: 6.35mm(1/4in)/9.52mm(3/8in)
Max.refrigerant pipe length: 25
Max. difference in level (m): 10
Connection wiring: 1.5x4//
Plug Type: No Plug
Thermostat: Remote Controlled
Operation temperature: 17-30
Application area(Cooling Standard):'12-18

Warranty

Midea Air Conditioner

• Class A Warranty Policy

1. 1. Class A units are sold on an “As is, where is” basis, which may or may not have the following: panel discoloration, dents, scratches and other aesthetic issues.
   2. All items are quality inspected before dispatch. Returns will only be allowed if the unit is proven defective by our authorized service center. Qualified returns can be processed within 7 days from date of receipt.
   3. Warranty provisions:
      1. Parts and Labor – 6 months
      2. Compressor – 1 year
      3. Installation (only if done by a CIC accredited installer)
   4. Warranty exclusions:
      1. Class A items are not covered by warranty on plastic parts and other aesthetic issues
      2. Unit must be installed only by an accredited installer. Otherwise, the warranty shall be void.
      3. No return unless unit is proven defective by our authorized service center. See refund and return policy for more info.
